C Series
C Series
Features: Excellent Aging Resistance, Oil Resistance, Hydrolysis Resistance, High Temperature Resistance, UV Resistance, Excellent Physical properties&Weathering Resistance.

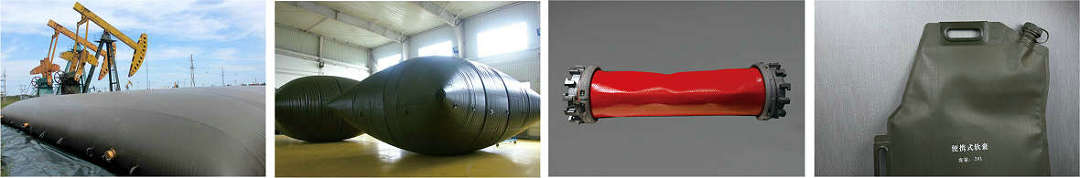

Applications: Hose&Tube, Film&Sheet, Fire Hose, Lay-Flat Hose, Shale Gas Tube, Oil Tank, etc.
| Properties | Standard | Unit | C80 | C85 | C90 | C95 |
| Density | ASTM D792 | g/cm3 | 1.15 | 1.16 | 1.18 | 1.20 |
| Hardness | ASTM D2240 | A/D | 82/- | 85/- | 90/- | 95/- |
| Tensile Strength | ASTM D412 | MPa | 25 | 30 | 35 | 45 |
| 100% Modulus | ASTM D412 | MPa | 7 | 8 | 12 | 20 |
| 300% Modulus | ASTM D412 | MPa | 14 | 20 | 30 | 40 |
| Elongation at Break | ASTM D412 | % | 550 | 500 | 400 | 350 |
| Tear Strength | ASTM D624 | kN/m | 90 | 120 | 140 | 180 |
| DIN Abrasion Loss | DIN 53516 | mm3 | 25 | 25 | 25 | 25 |
| Tg | DSC | °C | -30 | -20 | -15 | -8 |
NOTE: The above values are shown as typical values and should not be used as specifications.
